Dosing system PH/free CL, W-LAN interface app, WPD-A3, wall/hose pump
€6.714,64
Skip to product information
In stock

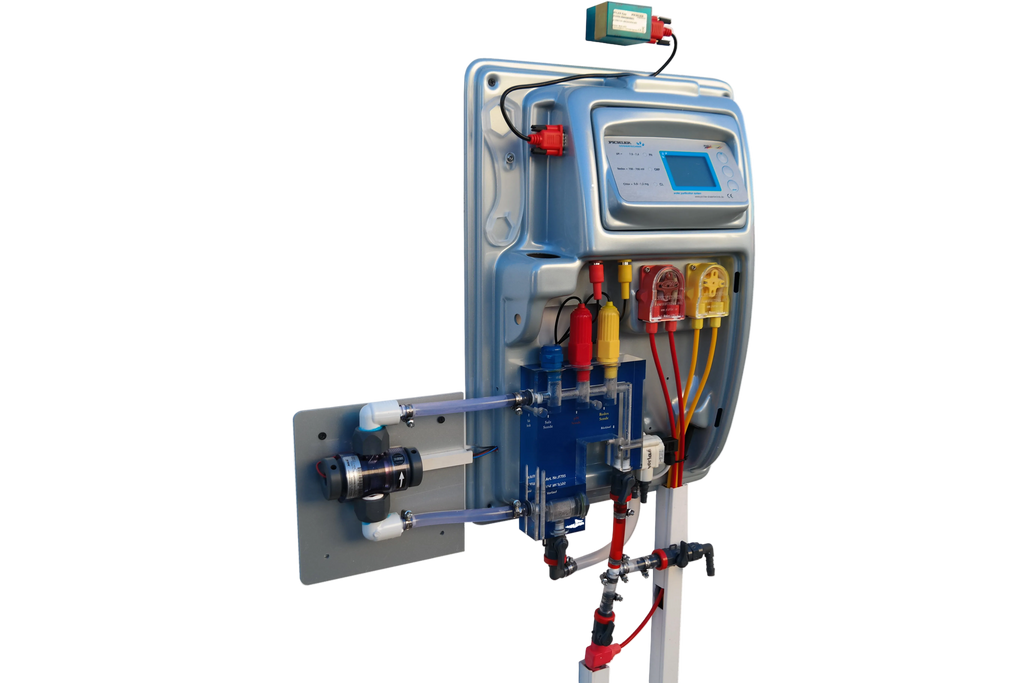

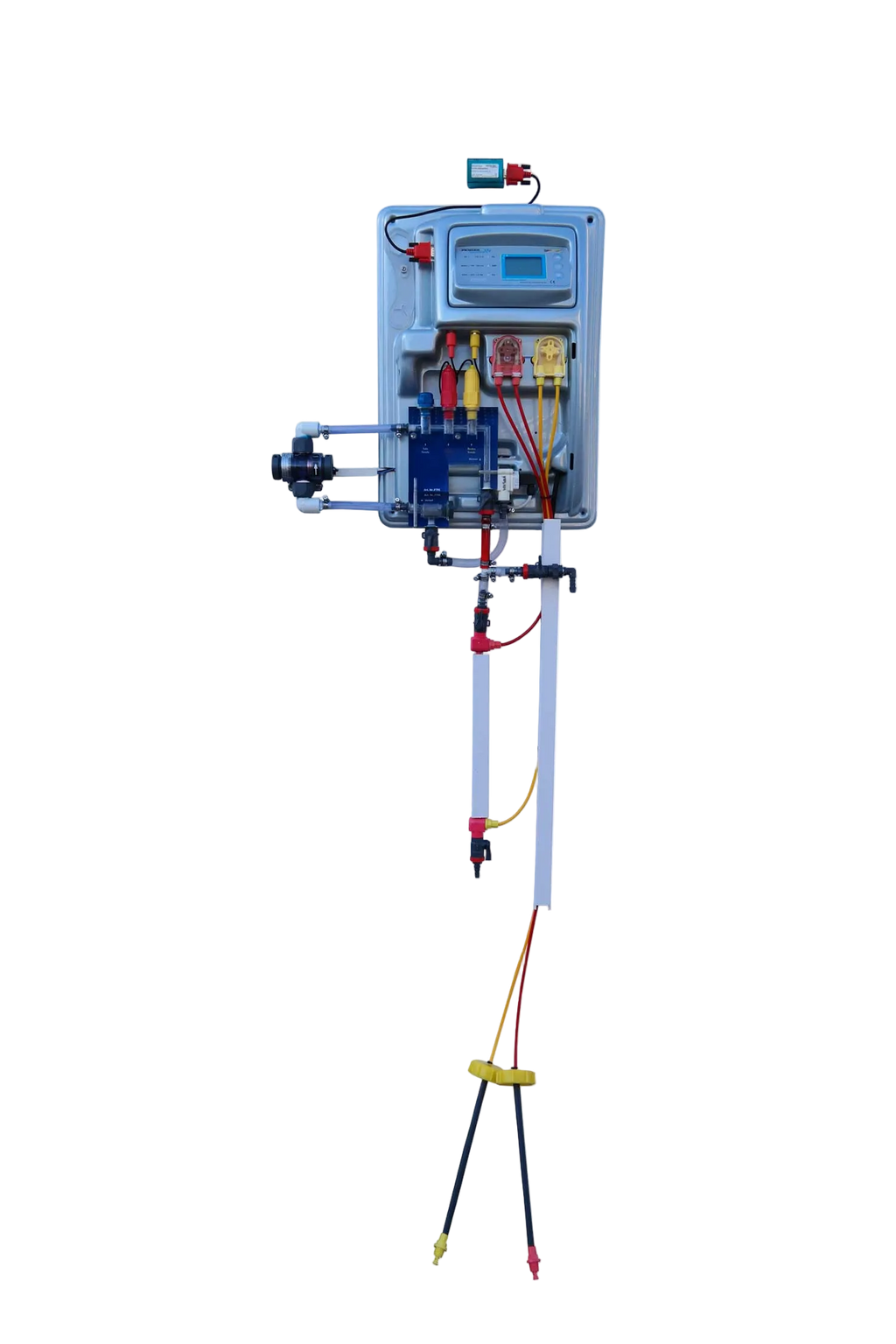

Free chlorine measurement and control system PH/CL/Redox, WPD-A3 wall mounting
all system with free chlorine measuring cell
If you would like an exact display with "mg" chlorine, then we recommend our system
with a free chlorine measuring cell. If you use the dosing system in connection with a
ented holiday apartment, hotel room or a boarding house, you should choose the free
hlorine measuring cell. Likewise with the Internet WLAN module.
The software can be accessed via all standard browsers. The values are recorded for 1 year and archived on our server for one year.
Included:
- Housing (ABS/PMMA silver-blue, UV-stable)
- Electronic control and regulation device
- 1x PH probe and Redox probe
- 1x chlorine probe (FCL free chlorine)
- 1x PH and Redox peristaltic pumps
1x PH and redox calibration liquid
- 1x can of test strips (PH, free chlorine, carbonate hardness)
- 1x instructions (online)
Additional tools
- 5 liter liquid chlorine container
- 2.5 liter PH liquid container
- 25 liter liquid chlorine container
- 25 liter PH liquid container
- WLAN interface / Internet module
(always informed about the status of the water quality)
(remote maintenance, remote adjustment possible)
(Push mail warning adjustable)
(Access Point app included)
Technical specifications:
(F295 dosing system for swimming spas, swimming pools up to approx. 100 m³ and all
ypes of whirlpools and suitable for public areas)
Measuring and control technology: electronic Flow rate monitoring: ltr./h display Measuring probes: pH / redox / chlorine Wall
part dimensions: 600mm / 400mm / 110mm H/W/D (incl. container)
Voltage: 230V/50Hz Low energy
consumption: approx. 5Watt/h. (with a water volume of approx. 1000 liters)
This system is installed in a dry room (e.g. garage, technical room)
constant flow rate for free chlorine measuring cell at least 40-50 l/h.
Unit output in mg/FCL (free chlorine)
Artikel Nr.: F295
Dosing system PH/free CL, W-LAN interface app, WPD-A3, wall/hose pump
€6.714,64
Taxes included.
Shipping calculated at checkout.
Free chlorine measurement and control system PH/CL/Redox, WPD-A3 wall mounting
all system with free chlorine measuring cell
If you would like an exact display with "mg" chlorine, then we recommend our system
with a free chlorine measuring cell. If you use the dosing system in connection with a
ented holiday apartment, hotel room or a boarding house, you should choose the free
hlorine measuring cell. Likewise with the Internet WLAN module.
The software can be accessed via all standard browsers. The values are recorded for 1 year and archived on our server for one year.
Included:
- Housing (ABS/PMMA silver-blue, UV-stable)
- Electronic control and regulation device
- 1x PH probe and Redox probe
- 1x chlorine probe (FCL free chlorine)
- 1x PH and Redox peristaltic pumps
1x PH and redox calibration liquid
- 1x can of test strips (PH, free chlorine, carbonate hardness)
- 1x instructions (online)
Additional tools
- 5 liter liquid chlorine container
- 2.5 liter PH liquid container
- 25 liter liquid chlorine container
- 25 liter PH liquid container
- WLAN interface / Internet module
(always informed about the status of the water quality)
(remote maintenance, remote adjustment possible)
(Push mail warning adjustable)
(Access Point app included)
Technical specifications:
(F295 dosing system for swimming spas, swimming pools up to approx. 100 m³ and all
ypes of whirlpools and suitable for public areas)
Measuring and control technology: electronic Flow rate monitoring: ltr./h display Measuring probes: pH / redox / chlorine Wall
part dimensions: 600mm / 400mm / 110mm H/W/D (incl. container)
Voltage: 230V/50Hz Low energy
consumption: approx. 5Watt/h. (with a water volume of approx. 1000 liters)
This system is installed in a dry room (e.g. garage, technical room)
constant flow rate for free chlorine measuring cell at least 40-50 l/h.
Unit output in mg/FCL (free chlorine)

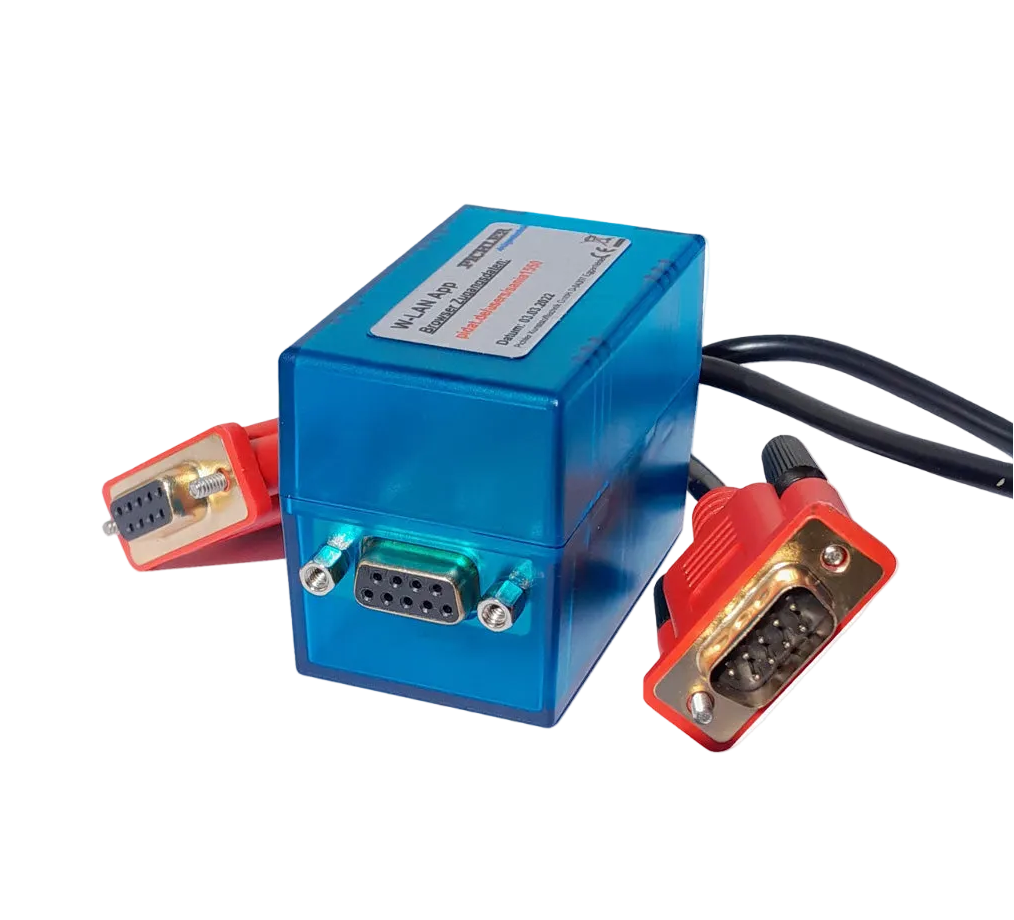

New WLAN interface module with integrated app
A WLAN connection is of course possible with an additionally available module item no. W291, available.
Example link: www.pichlerdata.de/users/chloranlage
In this way, the values can be conveniently read from a smartphone, tablet
or PC at any time.
Relaxed bathing without manually checking and adjusting water values every day.
- (Setup of the WLAN as well as control/calibration etc. also directly
possible via the app module<->smartphone)
- Connections via gold-plated connectors (RS-232) and screw terminals
for a secure connection.
- Overview of a browser website, remote maintenance option
via internet included.
- Data recording of all relevant measured values (can be accessed online).
(After one year the recording is deleted and starts over,
the files themselves can be loaded for archiving)
