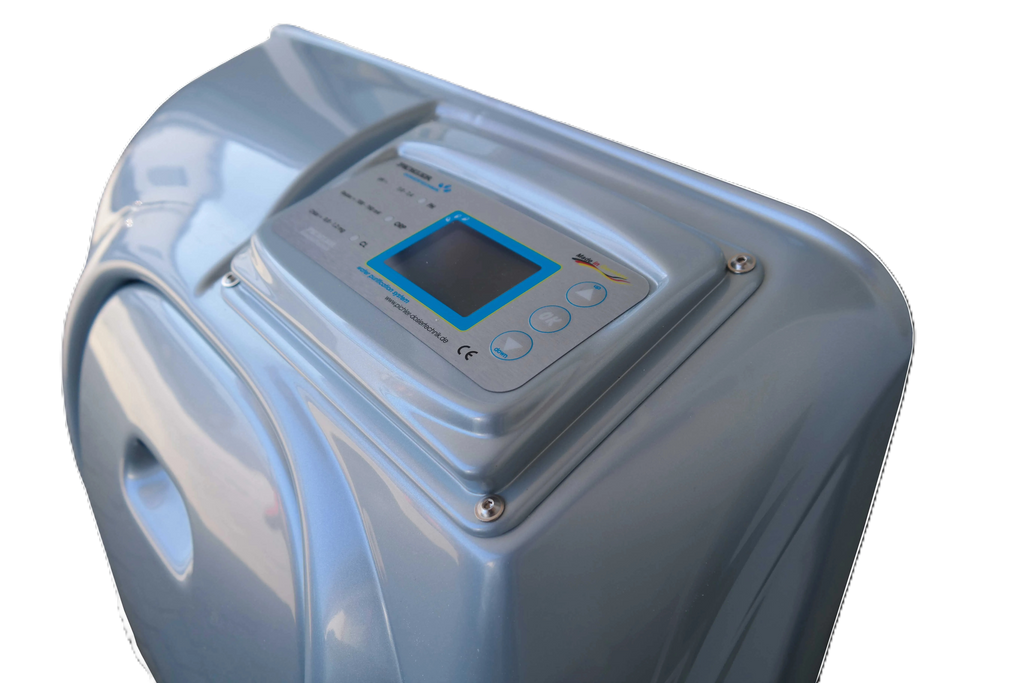

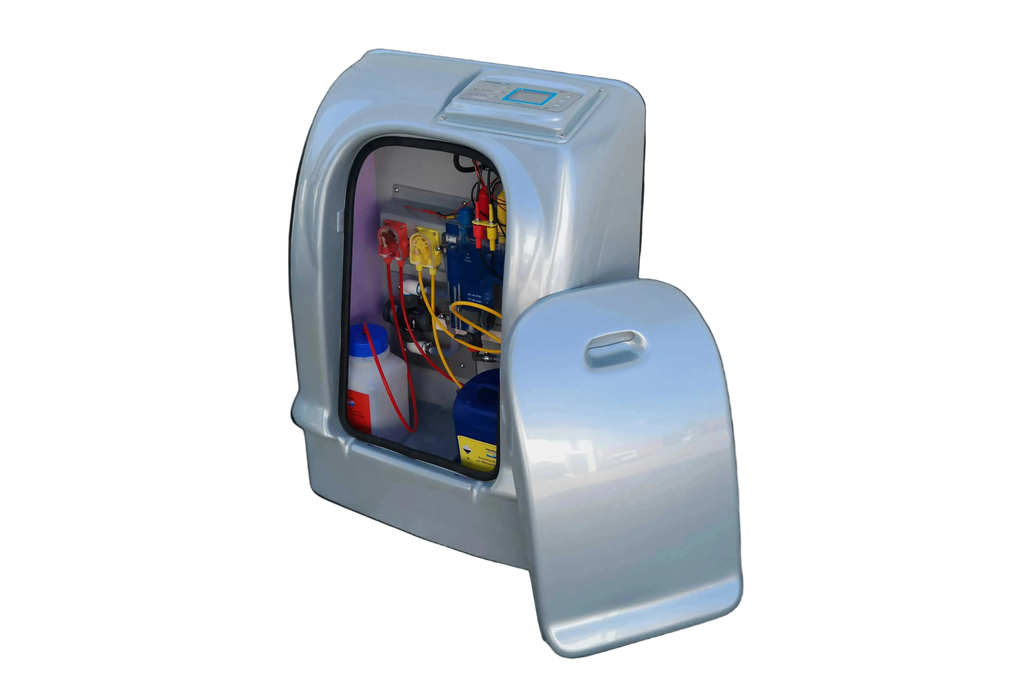

Dosing system thermal package, PH/redox/chlorine measuring cell, *

Free chlorine measurement and control system
PH/CL/Redox, WPD-A3 thermal system

Included:
- Housing (ABS/PMMA silver-blue, UV-stable)
- Electronic control and regulation device
- 1x PH probe and redox electrodes
- 1x chlorine probe (FCL free chlorine)
- 1x PH and Redox peristaltic pumps
- 1x PH and redox calibration liquid
- 1x can of test strips (PH, free chlorine, carbonate hardness)
- 1x instructions (online)

Additional accessories:
- 5 liter liquid chlorine container
- 3 liter PH liquid container
- 25 liter liquid chlorine container
- 25 liter PH liquid container
- WLAN interface / Internet module
(always informed about the status of the water quality)
(remote maintenance, remote adjustment possible)
(Push mail warning adjustable)
(Access Point app included)

Technical specifications
Thermally insulated dosing system with free chlorine measurement for swim spas and all types of whirlpools

Measuring and control technology: electronic
Flow Monitoring: Proximity Sensor
Measuring probes: pH / redox probes
Dimensions dosing box: 800mm / 610mm / 310mm H/W/D (incl. container)
Voltage: 230V/50Hz
Low energy consumption: approx. 5Watt/h. (with a water volume of approx. 1000 liters)

Design and based on DIN19643
We have been developing and producing water treatment systems for whirlpools, swim spas and swimming pools (up to approx. 100 m³ water volume) for 25 years.
Our fully automatic chlorination system is more reliable than manual chlorination.
Even if chlorine is often not desired, there is no way around it without chlorine dosing in a bathing pool for safely covered disinfection.
There are many methods, such as electrolysis, active oxygen or chemical additives, these often do not bring the desired result and a clean and disinfected one
Water.
The safest disinfection is chlorine, which is also described and recommended by the legislator as safe disinfection in DIN 19643.
In order to obtain an effective effect of the chlorination of the water, the pH value is also automatically regulated and the water hardness is lowered.
The tank fill levels are calculated electronically and sent to the display.

Constant flow rate for free chlorine measuring cell at least
40-50 l/h. Unit output in mg/FCL (free chlorine)

New WLAN interface module with integrated app
A WLAN connection is of course possible with an additionally available module item no. W291, available.
Example link: www.pichlerdata.de/users/chloranlage

In this way, the values ​​can be conveniently read from a smartphone, tablet
or PC at any time.
Relaxed bathing without manually checking and adjusting water values ​​every day.
- (Setup of the WLAN as well as control/calibration etc. also directly
possible via the app module<->smartphone)
- Connections via gold-plated connectors (RS-232) and screw terminals
for a secure connection.
- Overview of a browser website, remote maintenance option
via internet included.
- Data recording of all relevant measured values ​​(can be accessed online).
(After one year the recording is deleted and starts over,
the files themselves can be loaded for archiving)
